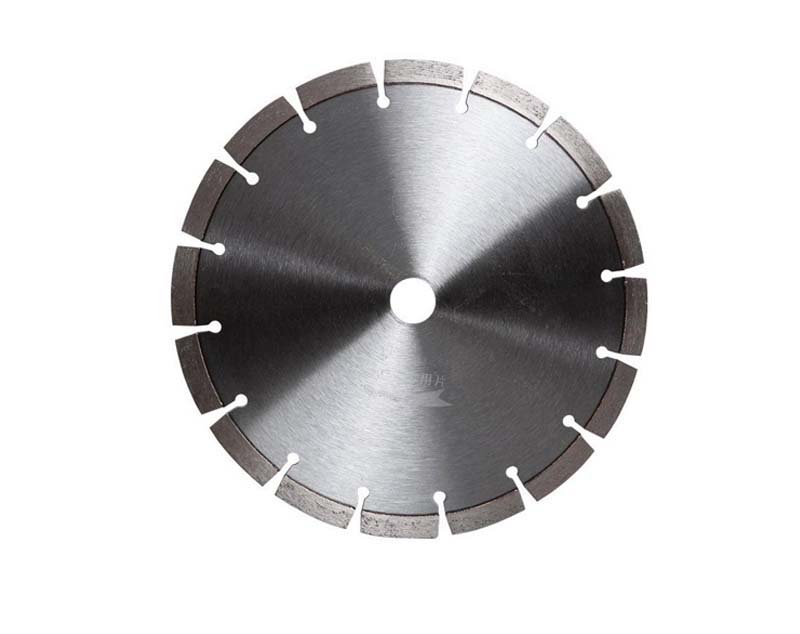

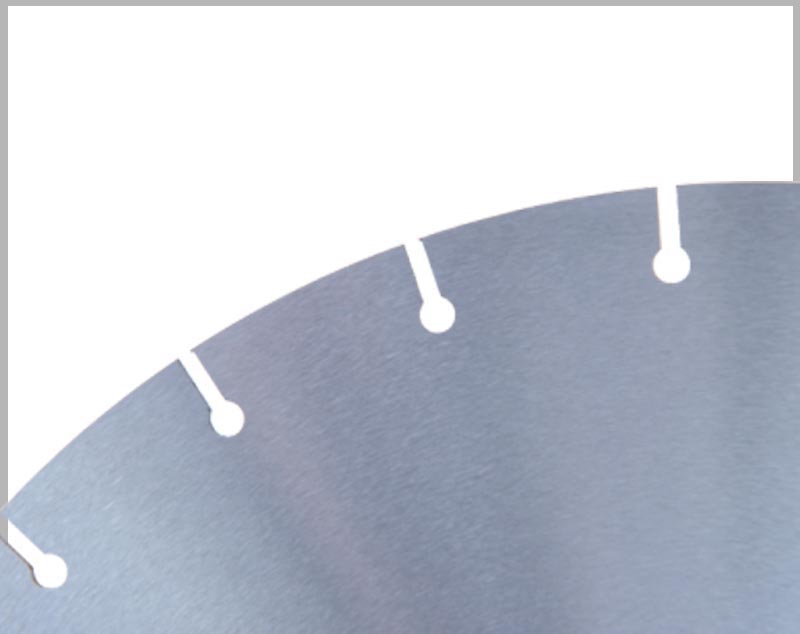

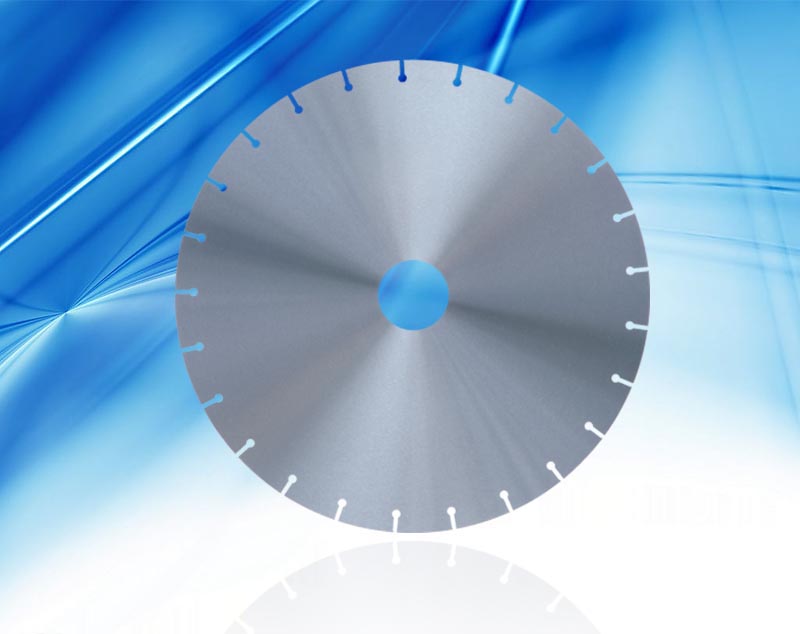

常规金刚石圆锯片基体 钥匙孔
名称：常规金刚石圆锯片基体 钥匙孔
用途：石材、建材切割用
关键词：金刚石圆锯片，锯片基体，石材，建材，切割
注：未注明规格亦可订做
用途：石材、建材切割用
关键词：金刚石圆锯片，锯片基体，石材，建材，切割

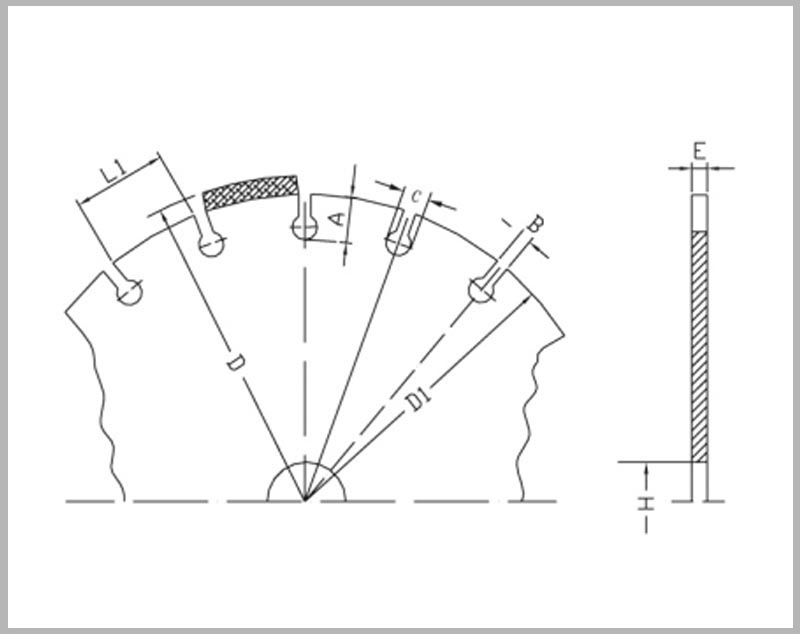

| 锯片直径D | 基体直径D1 |
中心孔H |
厚度E | 齿数Z | 槽深A | 槽宽B | 钥孔孔直径C |
焊接方式 |
|
|
高频焊接 |
激光焊接 |
||||||||
| 300 | 290 |
25.4 |
1.8/2.2 | 21 | 16/18/20 | 3 | 8 | √ | √ |
| 350 | 340 | 2.2/2.4 | 24 | 16/18/20 | 3 | 8 | √ | √ | |
| 400 | 390 | 2.6/2.8 | 28 | 16/18/20 | 3 | 8 | √ | √ | |
| 450 | 440 | 2.8/3.0 | 32 | 16/18/20 | 3 | 8 | √ | √ | |
| 500 | 490 | 2.8/3.0 | 36 | 16/18/20 | 3 | 8 | √ | √ | |
| 550 | 540 | 3.0/3.2 | 40 | 16/18/20 | 3 | 8 | √ | √ | |
| 600 | 590 | 3.4/3.6 | 42 | 16/18/20 | 3 | 8 | √ | √ | |
| 700 | 690 |
50 |
4.0 | 50 | 16/18/20 | 5 | 8 | √ | √ |
| 800 | 790 | 4.2/4.5 | 57 | 16/18/20 | 5 | 8 | √ | √ | |
| 900 | 890 | 5.0/5.5 | 64 | 16/18/20 | 5 | 8 | √ | √ | |
| 1000 | 990 | 5.0/5.5 | 70 | 16/18/20 | 5 | 8 | √ | √ | |
| 1100 | 1090 | 5.0/5.5 | 72 | 16/18/20 | 5 | 8 | √ | √ | |
| 1200 | 1184 | 5.5/6.0 | 80 | 16/18/20 | 5 | 8 | √ | √ | |
| 1300 | 1284 | 6.0/6.5 | 88 | 16/18/20 | 5 | 8 | √ | ||
| 1400 | 1384 | 6.5 | 92 | 16/18/20 | 5 | 8 | √ | ||
| 1500 | 1484 | 7.0 | 100 | 16/18/20 | 5 | 8 | √ | ||
| 1600 | 1584 | 7.2 | 108 | 16/18/20 | 5 | 8 | √ | ||
